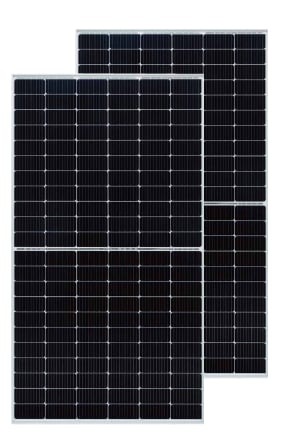

MonocrystallineBifacialTOPConN-type
Talesun Solar undefined 505

Talesun Solar • bipro td7g66m 485-505w

bipro td7g66m 485-505w 505505W

BifacialTOPConN-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
505W
Power Output
21.2%
Efficiency
2100 x 1134
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • 10BB Half-cut Cell Technology
  • New circuit design, lower internal current, lower Rs loss
  • Ga dopped wafer, attenuation ＜2% (1st year) / ≤0.45% (Linear)
  • Industry Leading High Yield
  • Bifacial PERC cell technology, 5%-25% more yield depends on different conditions
  • Excellent Anti-PID Performance
  • 2 times of industry standard Anti-PID test
  • No water-permeability and high wear-resistance, can be widely used in high-humid, windy and dusty area
  • IP68 Junction Box, High waterproof level

Talesun Solar 505 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
20 Panels
Estimated Roof Area
517 sq.ft. (48 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)505 W
Module Efficiency21.2 %
Voltage at Pmax (Vmp)38.47 V
Current at Pmax (Imp)13.13 A
Open Circuit Voltage (Voc)45.76 V
Short Circuit Current (Isc)14.2 A

Mechanical Data

Dimensions2100 x 1134 x 30 mm
Weight29.4 kg
Cell TypeMonocrystalline
Number of Cells132
Front Glass2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.35 %/°C
Temperature Coefficient of Voc-0.26 %/°C
Temperature Coefficient of Isc0.048 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2100 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Talesun Solar 505 (505W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 505W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Talesun Solar 505 is designed for specific solar energy applications. This panel is an excellent choice if you:

Want high-power 505W panels for better roof utilization
Prioritize high efficiency performance
Seek cutting-edge technology with superior efficiency

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Talesun Solar 505 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 505W per panel, a typical 10kW residential system requires about 20 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Talesun Solar 505?

This panel has an efficiency of 21.2%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Talesun Solar 505?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Talesun Solar 505?

The module dimensions are 2100mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Talesun Solar 505 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Talesun Solar 505 come with?

This panel includes a 12-year product warranty from Talesun Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
