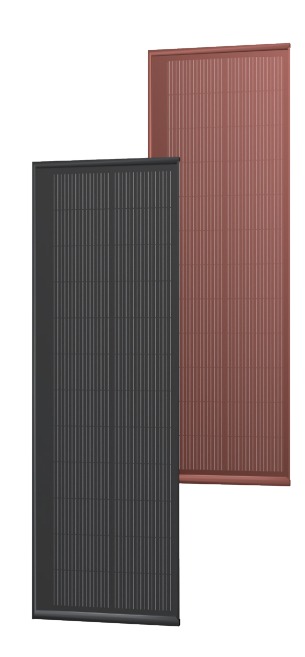

MonocrystallineTOPConBIPVN-type
Trina Solar undefined 110

Trina Solar • teg solar tiles teb nega2cd.45-100-110w

teg solar tiles teb nega2cd.45-100-110w 110110W

TOPConBIPVN-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
110W
Power Output
18.5%
Efficiency
1350 x 440
Dimensions (mm)
10 Yrs
Product Warranty
Find Installer

Key Features

  • Replace conventional tiles, widely used on public buildings and multi-functional buildings.
  • Solar Tiles
  • Innovative Integration of Photovoltaic and Roofs
  • Lighter and Stronger
  • Reduced roof load (about 30% of weight of conventional tiles)
  • Double-strength glass (about 3 times as strong as conventional tiles)
  • Safe, Reliable and Durable
  • Water-, fire-, and wind-resistant
  • Ventilation design
  • Same lifespan as building materials
  • High Energy Yield, Low Degradation
  • Trinasolar's high-efficiency cells
  • High power output and low degradation
  • Added benefit of energy generation
  • Easy Installation and Maintenance
  • Seamless incorporation into roof system
  • Modular construction assembly
  • Anti-dust frame design
  • Aesthetic Roofing
  • Customizable colors and patterns
  • Optional layout designs
  • The integration of solar with building aesthetics
  • Products and System Certifications IEC61215/IEC61730
  • GB/T 36584 / GB 8624
  • ISO9001: Quality Management System

Trina Solar 110 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
91 Panels
Estimated Roof Area
581 sq.ft. (54 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)110 W
Module Efficiency18.5 %
Voltage at Pmax (Vmp)14.35 V
Current at Pmax (Imp)7.7 A
Open Circuit Voltage (Voc)15.28 V
Short Circuit Current (Isc)8.8 A

Mechanical Data

Dimensions1350 x 440 x 27 mm
Weight7.7 kg
Cell TypeMonocrystalline
Number of Cells0
Front Glass2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc-0.24 %/°C
Temperature Coefficient of Isc0.04 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

440 x 1350 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Trina Solar 110 (110W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 110W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Trina Solar 110 is designed for specific solar energy applications. This panel is an excellent choice if you:

Have limited roof space (110W compact panels)
Balance efficiency with cost-effectiveness
Seek cutting-edge technology with superior efficiency
Have smaller installation areas or unique roof constraints
Install in hot climates (low temperature coefficient)
Use standard residential panel configurations

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Trina Solar 110 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 110W per panel, a typical 10kW residential system requires about 91 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Trina Solar 110?

This panel has an efficiency of 18.5%, using TOPCon, BIPV, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Trina Solar 110?

The module dimensions are 1350mm × 440mm × 27mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Trina Solar 110 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Trina Solar 110 come with?

This panel includes a 10-year product warranty from Trina Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
