MonocrystallineBifacialTOPConN-type

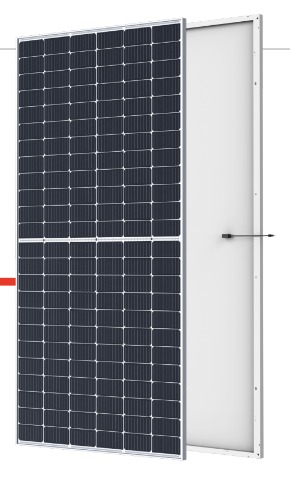

Trina Solar undefined 445W

Trina Solar • trina solar tallmax m tsm de17m(ii) 440-465w

trina solar tallmax m tsm de17m(ii) 440-465w 445W445W

BifacialTOPConN-type
Region:Poland
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
445W
Power Output
20.4%
Efficiency
2102 x 1040
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Up to 465W front power and 21.3% module efficiency with half-cut and MBB (Multi Busbar) technology bringing more BOS savings
  • Lower resistance of half-cut and good reflection effect of MBB ensure high power
  • Excellent IAM and low light performance validated by 3rd party with cell process and module material optimization
  • Better anti-shading performance and lower operating temperature
  • Ensured PID resistance through cell process and module material control
  • Resistant to salt, acid and ammonia
  • Mechanical performance: Up to 5400 Pa positive load and 2400 Pa negative load

Trina Solar 445W Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
23 Panels
Estimated Roof Area
538 sq.ft. (50 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)445 W
Module Efficiency20.4 %
Voltage at Pmax (Vmp)40.8 V
Current at Pmax (Imp)10.9 A
Open Circuit Voltage (Voc)49.4 V
Short Circuit Current (Isc)11.46 A

Mechanical Data

Dimensions2102 x 1040 x 35 mm
Weight24.0 kg
Cell TypeMonocrystalline
Number of Cells144
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.34 %/°C
Temperature Coefficient of Voc-0.34 %/°C
Temperature Coefficient of Isc-0.25 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1040 x 2102 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Trina Solar 445W (445W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 445W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Trina Solar 445W is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 445W system
Prioritize high efficiency performance
Seek cutting-edge technology with superior efficiency
Install in hot climates (low temperature coefficient)
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Trina Solar 445W panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 445W per panel, a typical 10kW residential system requires about 23 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Trina Solar 445W?

This panel has an efficiency of 20.4%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Trina Solar 445W?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Trina Solar 445W?

The module dimensions are 2102mm × 1040mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Trina Solar 445W compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Trina Solar 445W come with?

This panel includes a 12-year product warranty from Trina Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
