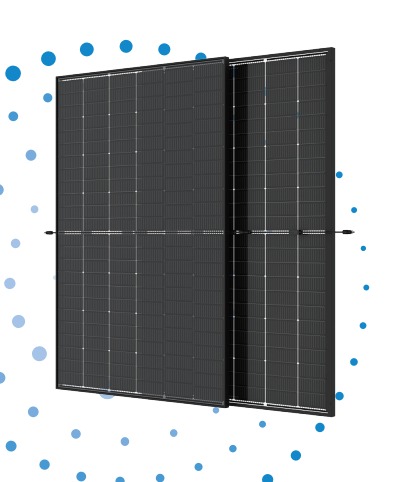

Trina Solar • trina solar vertex s+ tsm neg9rc.27-415-445w
trina solar vertex s+ tsm neg9rc.27-415-445w 445W445W
Key Features
- Small in size, bigger on power
- Up to 445W, 22.3% module efficiency, 3.2% more energy yield in the same area
- Reduce installation cost with higher power bin and efficiency for better return on investment
- Excellent temperature coefficient
- Transparent Dual-glass Design
- Bifacial design with aesthetic appearance, 3.2% transparent encapsulated back glass
- Glass optimizes rear-side energy harvest
- Robust design under extreme weather: sand, salt, snow, and hail
- Fire class A and fully applicable in coastal highly humid & sandy desert,
- Strong enough for installation in an agricultural environment
- High Reliability
- 355 quality tests covering: PID, micro cracks, hot spot, UV, TC
- Better anti-crack for overall protection
- High mechanical load up to 5400 Pa on front and 4000 Pa back
Trina Solar 445W Panels: What Your System Looks Like
Based on a standard 10kW residential installation
Electrical Data (STC)
Mechanical Data
Temperature Ratings
Similar Products
Will These Panels Fit Your Roof?
Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Trina Solar 445W (445W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.
Ideal Use Case
The Trina Solar 445W is designed for specific solar energy applications. This panel is an excellent choice if you:
Don’t guess your solar setup — calculate it first!
Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.
Product FAQ
How many Trina Solar 445W panels do I need for my home?
The number of panels depends on your energy consumption and roof area. At 445W per panel, a typical 10kW residential system requires about 23 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.
What is the efficiency of Trina Solar 445W?
This panel has an efficiency of 22.3%, using Bifacial, PERC cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.
Can I get more power from the bifacial Trina Solar 445W?
Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.
What are the dimensions of the Trina Solar 445W?
The module dimensions are 1762mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.
Is Trina Solar 445W compatible with standard inverters?
Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.
What warranty does the Trina Solar 445W come with?
This panel includes a 15-year product warranty from Trina Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
