Monocrystalline

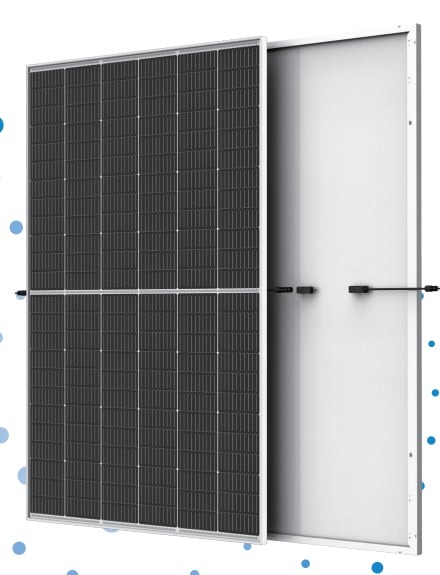

Trina Solar undefined TSM-DE09R 420W

Trina Solar • trina solar vertex s tsm de09r 415-435w

TSM-DE09R 420W420W

Region:Czech Republic
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
420W
Power Output
21%
Efficiency
1762 x 1134
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Small form factor. Generate a huge amount of energy even in limited space.
  • resistance and improved current collection
  • Universal solution for residential and C&I rooftops
  • Designed for compatibility with existing mainstream optimizers, inverters and mounting systems
  • Perfect size and low weight. Easy for handling. Economy for transporting
  • Diverse installation solutions. Flexible for system deployment
  • High Reliability
  • 12 year product warranty
  • 25 year performance warranty with lowest degradation
  • Minimized micro-cracks with innovative non-destructive cutting technology
  • Ensured PID resistance through cell process and module material control
  • Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load

Trina Solar TSM-DE09R 420W Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
24 Panels
Estimated Roof Area
517 sq.ft. (48 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)420 W
Module Efficiency21 %
Voltage at Pmax (Vmp)42 V
Current at Pmax (Imp)10.01 A
Open Circuit Voltage (Voc)50.1 V
Short Circuit Current (Isc)10.58 A

Mechanical Data

Dimensions1762 x 1134 x 30 mm
Weight21.8 kg
Cell TypeMonocrystalline
Number of Cells144
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.34 %/°C
Temperature Coefficient of Voc-0.34 %/°C
Temperature Coefficient of Isc0.04 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 1762 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Trina Solar TSM-DE09R 420W (420W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 420W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Trina Solar TSM-DE09R 420W is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 420W system
Prioritize high efficiency performance
Install in hot climates (low temperature coefficient)
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Trina Solar TSM-DE09R 420W panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 420W per panel, a typical 10kW residential system requires about 24 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Trina Solar TSM-DE09R 420W?

This panel has an efficiency of 21%, using cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Trina Solar TSM-DE09R 420W?

The module dimensions are 1762mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Trina Solar TSM-DE09R 420W compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Trina Solar TSM-DE09R 420W come with?

This panel includes a 12-year product warranty from Trina Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
