MonocrystallineBifacialTOPConN-type

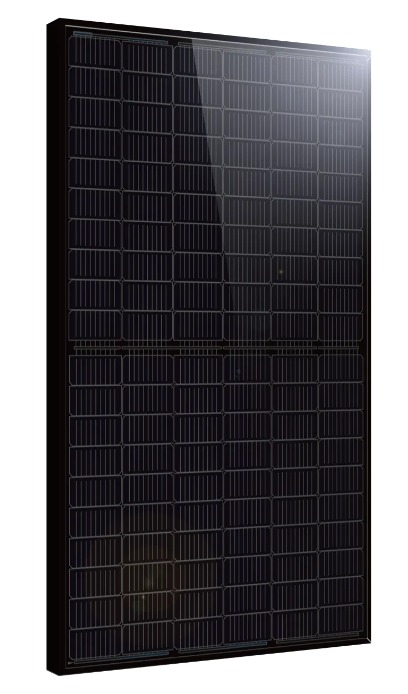

URECO Solar undefined F6M360E7G-BB

URECO Solar • f6m_e7g bb 120 cells 345-365w (usa)

F6M360E7G-BB360W

BifacialTOPConN-type
Region:Taiwan
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
360W
Power Output
19.5%
Efficiency
1762 x 1048
Dimensions (mm)
25 Yrs
Product Warranty
Find Installer

Key Features

  • + Publicly Traded Taiwanese Company. Formed as the merger of four Cell and Module Manufacturers in 2018. All four founding companies (Neo Solar Power, Gintech, Solartech, NDF) were in existence since 2008 or earlier.
  • + Over 400MW Of Projects Installed in the United States.
  • + 25 Year Output Warranty and 25 Year Product Guarantee
  • + Winner of Taiwan Excellence Award 7 Consecutive Years for Highest Efficiency Module.
  • + Super All Black Design for High Profile Residential and Commercial Installations.
  • + High Quality Solar Cell Technology allows URE to be major international exporter to Solar Module manufacturers in the United States and Europe.

URECO Solar F6M360E7G-BB Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
28 Panels
Estimated Roof Area
560 sq.ft. (52 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)360 W
Module Efficiency19.5 %
Voltage at Pmax (Vmp)34 V
Current at Pmax (Imp)10.59 A
Open Circuit Voltage (Voc)40.5 V
Short Circuit Current (Isc)11.35 A

Mechanical Data

Dimensions1762 x 1048 x 35 mm
Weight19.6 kg
Cell TypeMonocrystalline
Number of Cells0
Front Glass3.2 mm
FrameAnodized Aluminium, Black

Temperature Ratings

Temperature Coefficient of Pmax-0.35 %/°C
Temperature Coefficient of Voc-0.27 %/°C
Temperature Coefficient of Isc0.048 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1048 x 1762 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the URECO Solar F6M360E7G-BB (360W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 360W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The URECO Solar F6M360E7G-BB is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 360W system
Balance efficiency with cost-effectiveness
Seek cutting-edge technology with superior efficiency
Want long-term reliability (25-year product warranty)
Prefer sleek, all-black aesthetic design
Use standard residential panel configurations

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many URECO Solar F6M360E7G-BB panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 360W per panel, a typical 10kW residential system requires about 28 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of URECO Solar F6M360E7G-BB?

This panel has an efficiency of 19.5%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial URECO Solar F6M360E7G-BB?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the URECO Solar F6M360E7G-BB?

The module dimensions are 1762mm × 1048mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is URECO Solar F6M360E7G-BB compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the URECO Solar F6M360E7G-BB come with?

This panel includes a 25-year product warranty from URECO Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
