MonocrystallineBifacialTOPConN-type

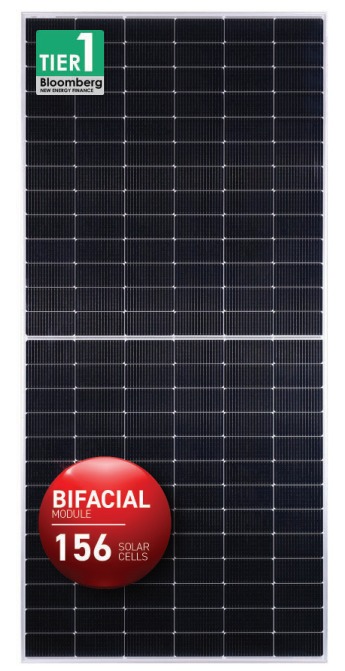

Vikram Solar undefined 620

Vikram Solar • hypersol m10-605-630w

hypersol m10-605-630w 620620W

BifacialTOPConN-type
Region:India
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
620W
Power Output
22.26%
Efficiency
2456 x 1134
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Positive power tolerance of upto 0 ~ 4.99Wp
  • Module Imp binning radically reduces string mismatch losses
  • Excellent anti-PID performance via optimized process and materials control
  • Lower susceptibility to LID & LeTID
  • Lower balance of systems cost
  • Improves value proposition of the product with competitive ROI
  • Multi stage EL and digitalised visual inspection results lower defect rates
  • Implemented engineering excellence ensures top notch quality
  • ⌀ 40mm hail test passed from third party laboratory

Vikram Solar 620 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
17 Panels
Estimated Roof Area
506 sq.ft. (47 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)620 W
Module Efficiency22.26 %
Voltage at Pmax (Vmp)46.1 V
Current at Pmax (Imp)13.45 A
Open Circuit Voltage (Voc)54.9 V
Short Circuit Current (Isc)14.12 A

Mechanical Data

Dimensions2456 x 1134 x 35 mm
Weight35.0 kg
Cell TypeMonocrystalline
Number of Cells156
Front Glass2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.3 %/°C
Temperature Coefficient of Voc-0.26 %/°C
Temperature Coefficient of Isc0.046 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2456 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Vikram Solar 620 (620W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 620W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Vikram Solar 620 is designed for specific solar energy applications. This panel is an excellent choice if you:

Need premium 620W panels for maximum power density
Maximize energy output in limited space (22.3% efficiency)
Seek cutting-edge technology with superior efficiency
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Vikram Solar 620 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 620W per panel, a typical 10kW residential system requires about 17 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Vikram Solar 620?

This panel has an efficiency of 22.26%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Vikram Solar 620?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Vikram Solar 620?

The module dimensions are 2456mm × 1134mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Vikram Solar 620 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Vikram Solar 620 come with?

This panel includes a 12-year product warranty from Vikram Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
