MonocrystallineBifacialN-type

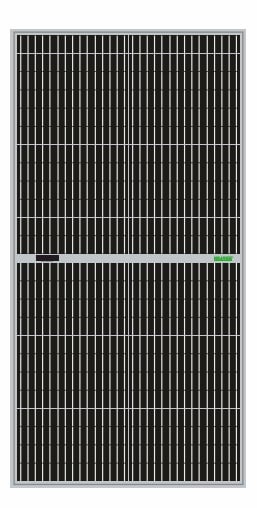

Waaree Energies undefined WSMD-395

Waaree Energies • arka series wsmd 380-400

WSMD-395395W

BifacialN-type
Region:India
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
395W
Power Output
19.62%
Efficiency
2007 x 1003
Dimensions (mm)
10 Yrs
Product Warranty
Find Installer

Key Features

  • Better performance under all climatic conditions
  • Enhanced power output due to revolutionary design
  • Split junction box improve heat dissipation
  • Reduced power losses up to 1/4 times
  • PID resistant with long term reliability
  • Increase shade tolerance
  • Superior performance of half cell

Waaree Energies WSMD-395 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
26 Panels
Estimated Roof Area
560 sq.ft. (52 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)395 W
Module Efficiency19.62 %
Voltage at Pmax (Vmp)39.81 V
Current at Pmax (Imp)9.95 A
Open Circuit Voltage (Voc)49.07 V
Short Circuit Current (Isc)10.35 A

Mechanical Data

Dimensions2007 x 1003 x 40 mm
Weight23.5 kg
Cell TypeMonocrystalline
Number of Cells144
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.37 %/°C
Temperature Coefficient of Voc-0.27 %/°C
Temperature Coefficient of Isc0.05 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1003 x 2007 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Waaree Energies WSMD-395 (395W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 395W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Waaree Energies WSMD-395 is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 395W system
Balance efficiency with cost-effectiveness
Can benefit from ground-reflected light (bifacial design)
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Waaree Energies WSMD-395 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 395W per panel, a typical 10kW residential system requires about 26 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Waaree Energies WSMD-395?

This panel has an efficiency of 19.62%, using Bifacial, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Waaree Energies WSMD-395?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Waaree Energies WSMD-395?

The module dimensions are 2007mm × 1003mm × 40mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Waaree Energies WSMD-395 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Waaree Energies WSMD-395 come with?

This panel includes a 10-year product warranty from Waaree Energies. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
