MonocrystallineBifacialTOPConN-type

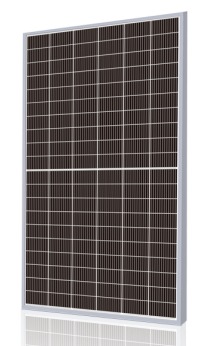

ZNSHINE Solar undefined 595

ZNSHINE Solar • zxm8 tpld120-585-610w (double glass optional)

zxm8 tpld120-585-610w (double glass optional) 595595W

BifacialTOPConN-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
595W
Power Output
21.02%
Efficiency
2172 x 1303
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Anti PID
  • Global,Tier 1 bankable brand,with independently certified advanced automated manufacturing.
  • 12BB HALF-CELL Double Glass Monocrystalline PERC PV Module
  • Excellent Quality Managerment System
  • Warranted reliability and stringent quality assurances well beyond certified requirements.
  • Better Weak Illumination Response
  • Excellent Cells Efficiency
  • Adapt To Harsh Outdoor Environment

ZNSHINE Solar 595 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
17 Panels
Estimated Roof Area
517 sq.ft. (48 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)595 W
Module Efficiency21.02 %
Voltage at Pmax (Vmp)34.2 V
Current at Pmax (Imp)17.4 A
Open Circuit Voltage (Voc)41.3 V
Short Circuit Current (Isc)18.31 A

Mechanical Data

Dimensions2172 x 1303 x 35 mm
Weight35.0 kg
Cell TypeMonocrystalline
Number of Cells120
Front Glass2 mm
Frame

Temperature Ratings

Temperature Coefficient of Pmax-0.34 %/°C
Temperature Coefficient of Voc-0.29 %/°C
Temperature Coefficient of Isc0.05 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1303 x 2172 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the ZNSHINE Solar 595 (595W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 595W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The ZNSHINE Solar 595 is designed for specific solar energy applications. This panel is an excellent choice if you:

Need premium 595W panels for maximum power density
Prioritize high efficiency performance
Seek cutting-edge technology with superior efficiency
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)
Build modern residential installations

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many ZNSHINE Solar 595 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 595W per panel, a typical 10kW residential system requires about 17 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of ZNSHINE Solar 595?

This panel has an efficiency of 21.02%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial ZNSHINE Solar 595?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the ZNSHINE Solar 595?

The module dimensions are 2172mm × 1303mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is ZNSHINE Solar 595 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the ZNSHINE Solar 595 come with?

This panel includes a 12-year product warranty from ZNSHINE Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
