MonocrystallineBifacialHJT

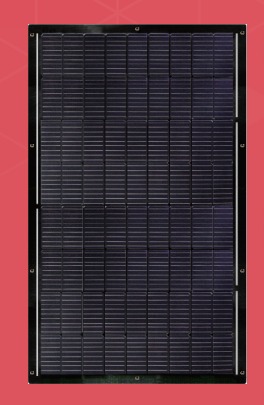

Sunman Energy undefined SMF200F-8X09DB-e

Sunman Energy • earc smf200f 8x09db e

SMF200F-8X09DB-e200W

BifacialHJT
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
200W
Power Output
16.26%
Efficiency
1420 x 881
Dimensions (mm)
5 Yrs
Product Warranty
Find Installer

Key Features

  • Ultra-light: Glass free module weighs 2.8 kg, 70% lighter than conventional glass modules.
  • Aesthetic: Seamless integration with underlying installation surface.
  • Durable: eArc is the first glassless module to pass the same durability tests as conventional glass modules, including IEC 61215:2016, IEC61730:2016 and UL61730 (USA). eArc has also passed PID, salt mist and ammonia resistance tests.

Sunman Energy SMF200F-8X09DB-e Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
50 Panels
Estimated Roof Area
678 sq.ft. (63 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)200 W
Module Efficiency16.26 %
Voltage at Pmax (Vmp)20.7 V
Current at Pmax (Imp)9.65 A
Open Circuit Voltage (Voc)24.5 V
Short Circuit Current (Isc)10.69 A

Mechanical Data

Dimensions1420 x 881 x 2 mm
Weight2.8 kg
Cell TypeMonocrystalline
Number of Cells72
Front Glass0
FrameFrameless

Temperature Ratings

Temperature Coefficient of Pmax-0.34 %/°C
Temperature Coefficient of Voc-0.34 %/°C
Temperature Coefficient of Isc0.033 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

881 x 1420 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Sunman Energy SMF200F-8X09DB-e (200W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 200W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Sunman Energy SMF200F-8X09DB-e is designed for specific solar energy applications. This panel is an excellent choice if you:

Have limited roof space (200W compact panels)
Seek cutting-edge technology with superior efficiency
Have smaller installation areas or unique roof constraints
Install in hot climates (low temperature coefficient)
Use standard residential panel configurations

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Sunman Energy SMF200F-8X09DB-e panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 200W per panel, a typical 10kW residential system requires about 50 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Sunman Energy SMF200F-8X09DB-e?

This panel has an efficiency of 16.26%, using Bifacial, HJT cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Sunman Energy SMF200F-8X09DB-e?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Sunman Energy SMF200F-8X09DB-e?

The module dimensions are 1420mm × 881mm × 2mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Sunman Energy SMF200F-8X09DB-e compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Sunman Energy SMF200F-8X09DB-e come with?

This panel includes a 5-year product warranty from Sunman Energy. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
